Table Size-W | 15 inches |
Table Size-L | 64 inches |
CNC Control | no |
Weight | 9500 pounds |

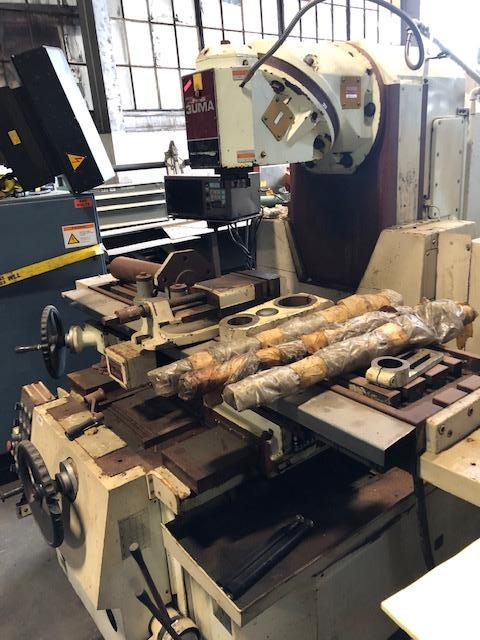

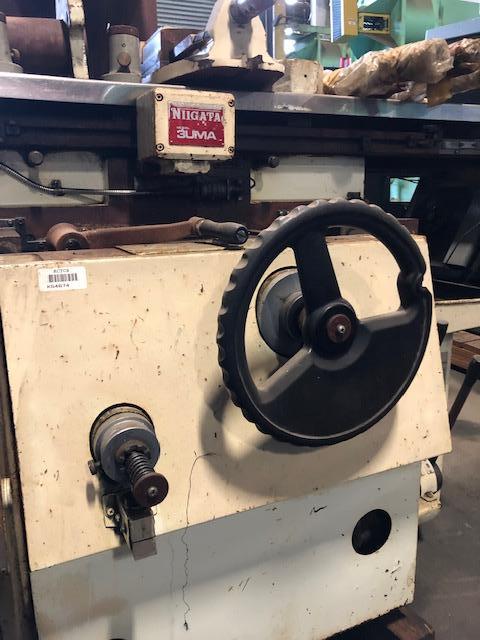

NIIGATA BED TYPE UNIVERSAL MILLING MACHINE

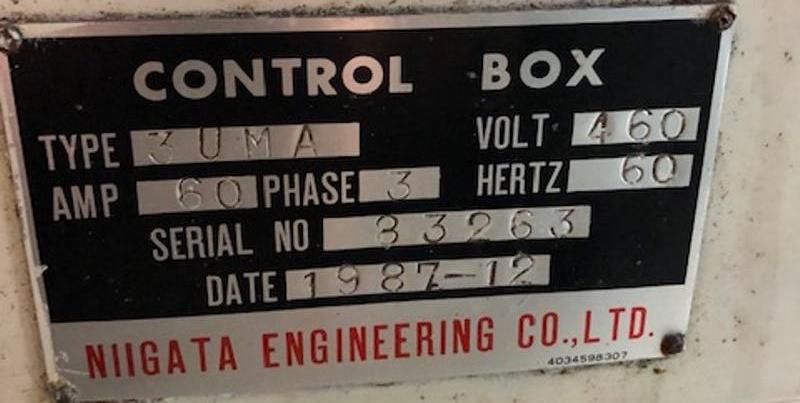

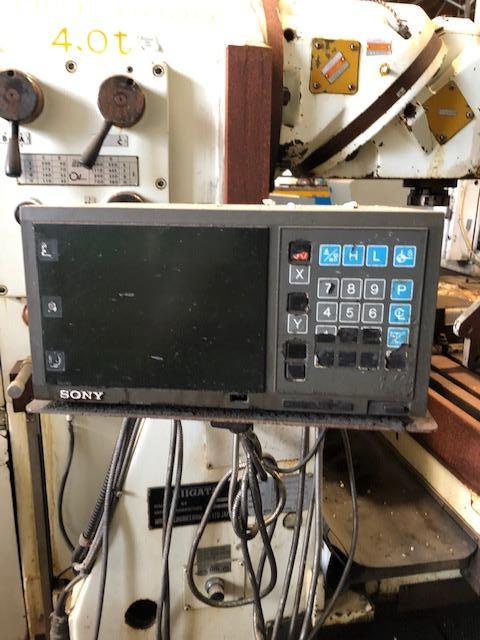

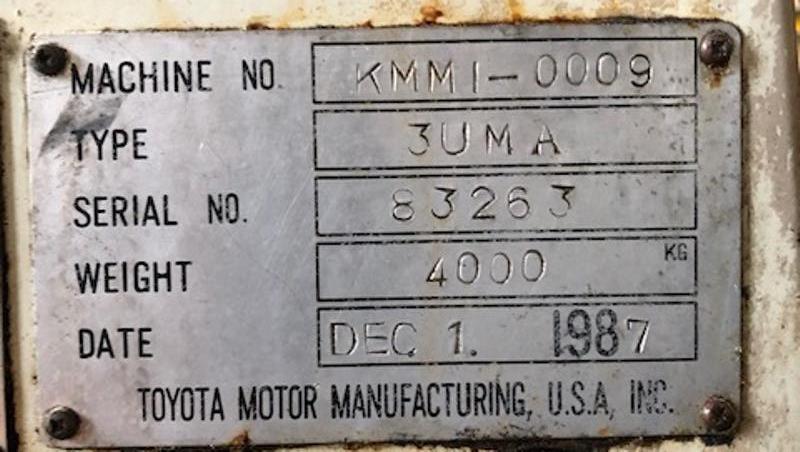

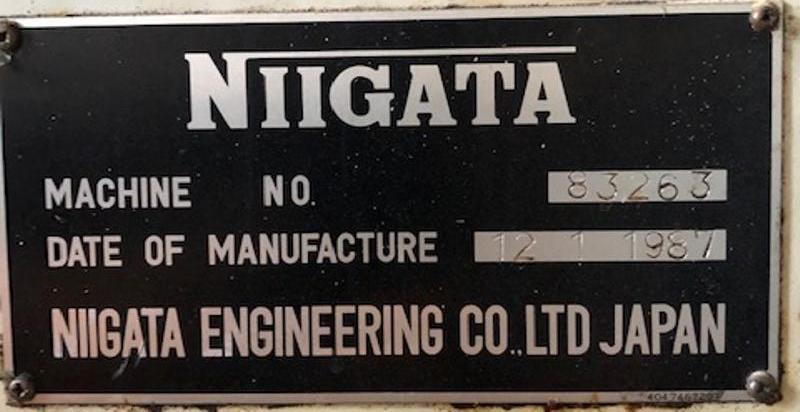

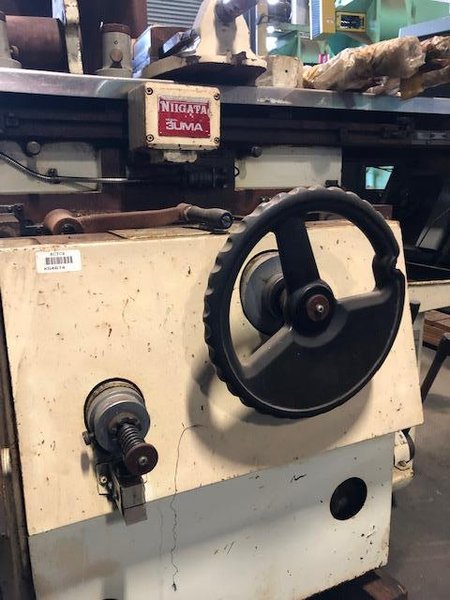

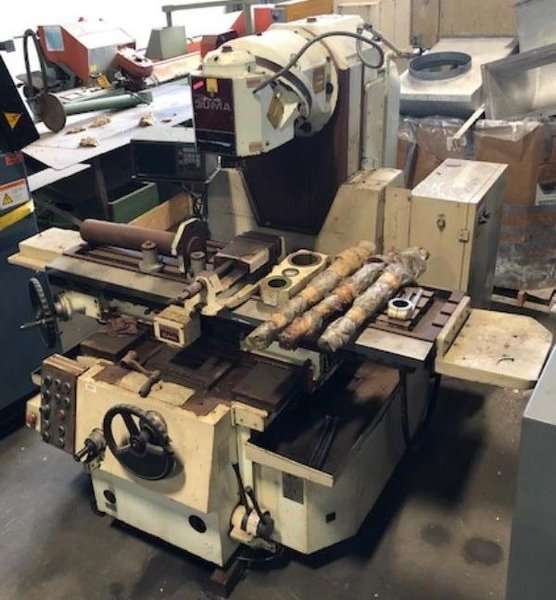

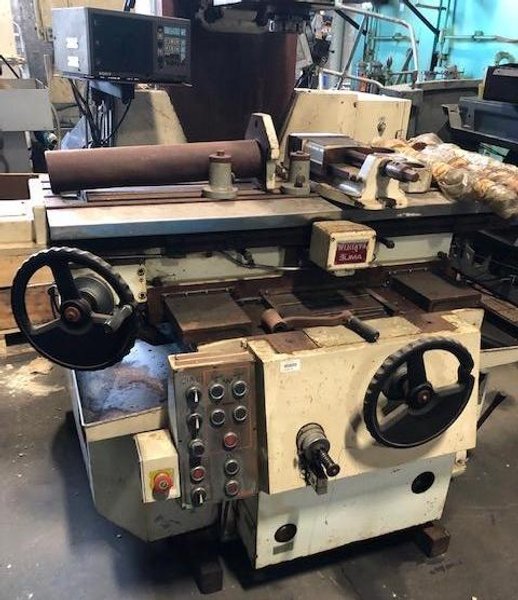

MODEL: 3UMA SERIAL NUMBER: 83263 "This machine is a bed type universal milling machine which has a double swiveling spindle head. Because of its double swiveling spindle head it can be used as a horizontal or vertical milling machine." GENERAL SPECIFICATIONS Table Size: 15" x 63" Longitudinal Table Travel: 39-3/8" Cross Travel: 16-1/2" Distance From Table To Horizontal Spindle Center w/Overarm: 2" to 17-3/4" Distance From Table To Horizontal Spindle Center w/o Overarm: 16" to 32" Distance From Table To Vertical Spindle Nose: 2-3/4" to 18-1/2" Number Of Feeds: 9 Feed Range, Longitudinal and Cross: 3/4" to 32" IPM Rapid Traverse, Longitudinal and Cross: 120" IPM Maximum Table Load: 1500 Lbs. Spindle Taper: No. 50 Spindle Speeds: (16) 45 - 1400 RPM Vertical Travel Of Column: 15-3/4" Column Feeds: (9) 3/16" to 8" IPM Rapid Traverse, Vertical: 30" IPM Distance From Column To Vertical Spindle Center: 18-1/2" Distance From Column To Horizontal Spindle Nose: 17-3/4" EQUIPPED WITH 15 HP Spindle Motor Automatic Table Cycle Sony Digital Readout Coolant System Automatic Lubrication Arbor Support and Arbor Chip Pans Miscellaneous Tooling Approximate Weight: 9500 Lbs. F.O.B. Cincinnati, Ohio ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER |
