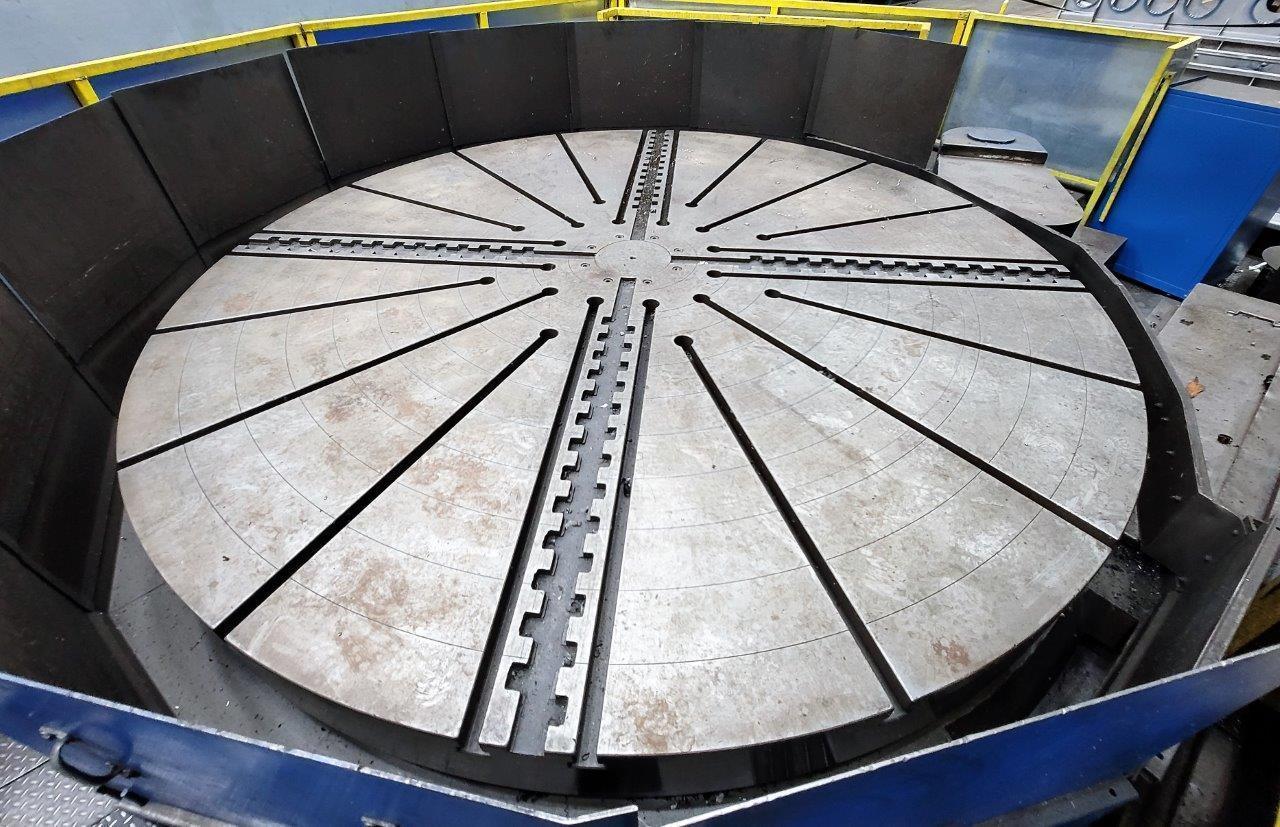

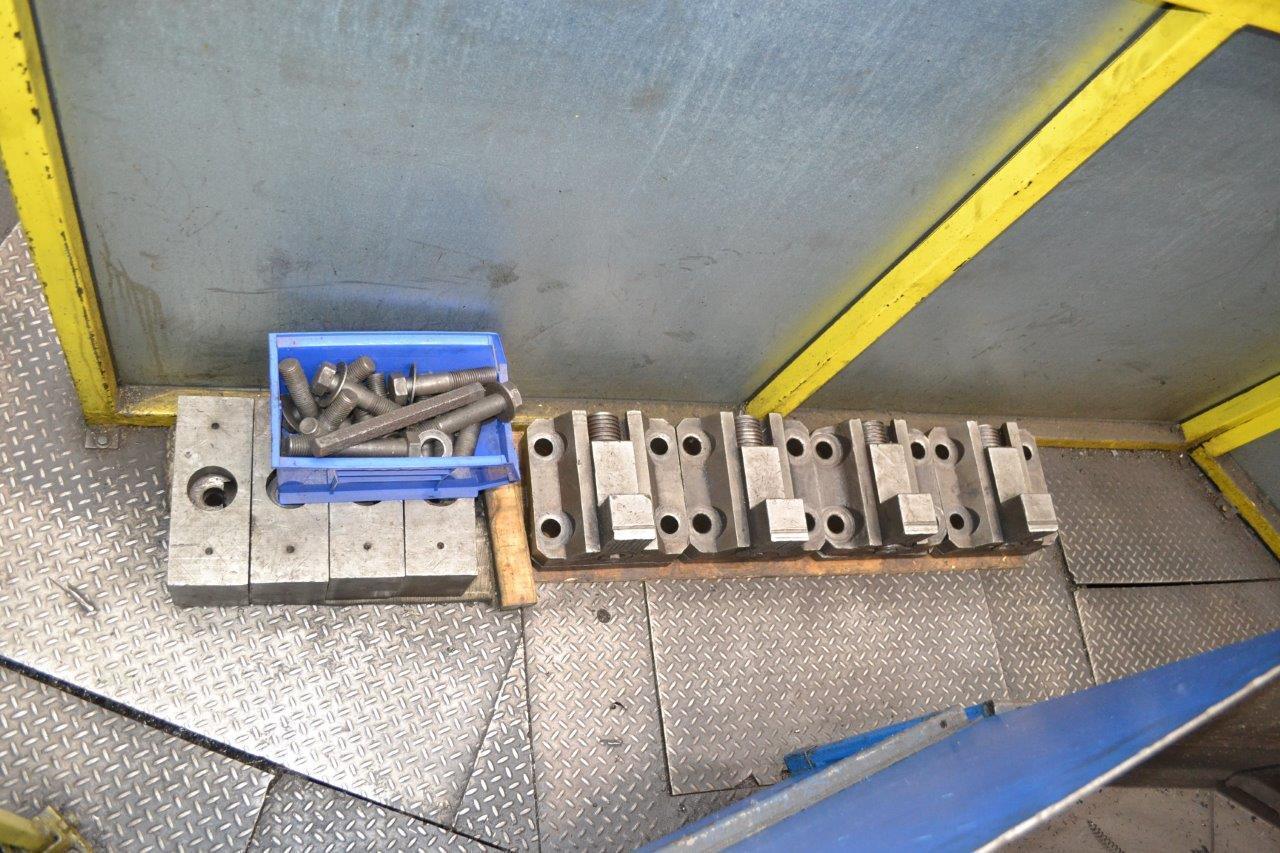

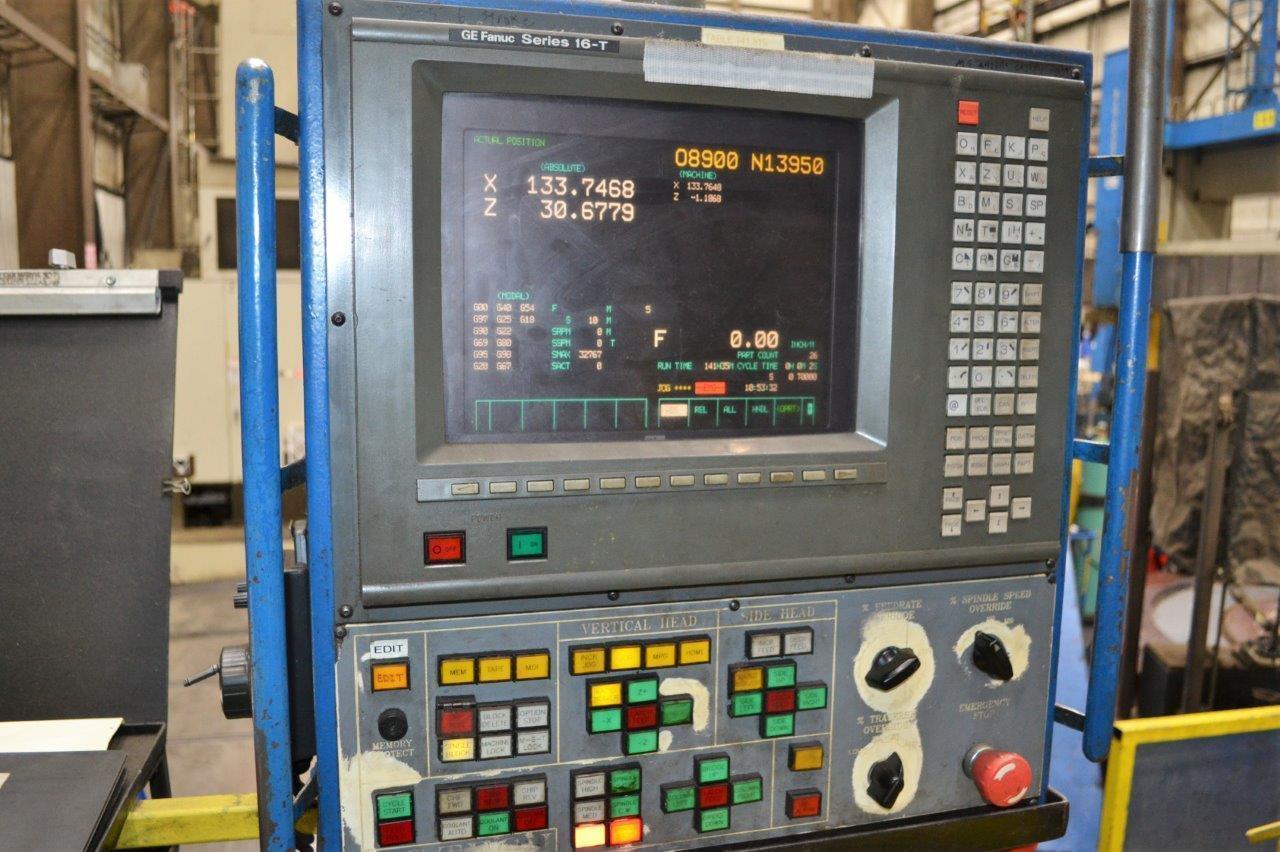

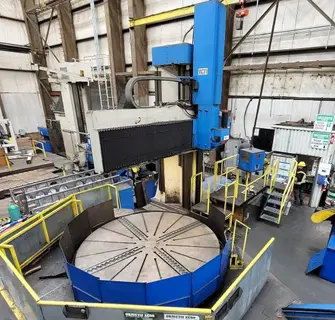

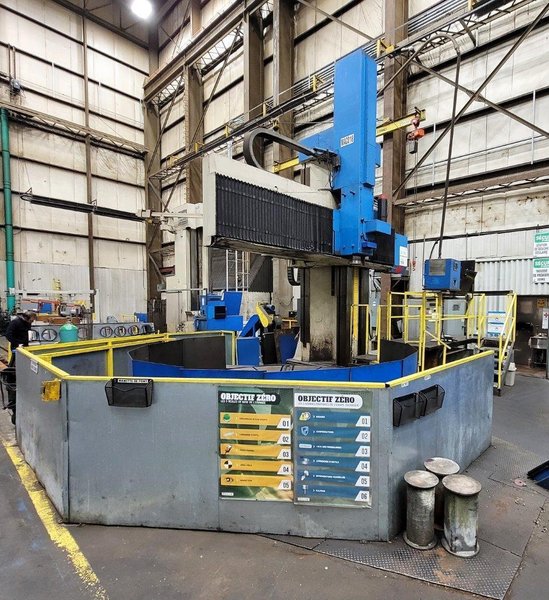

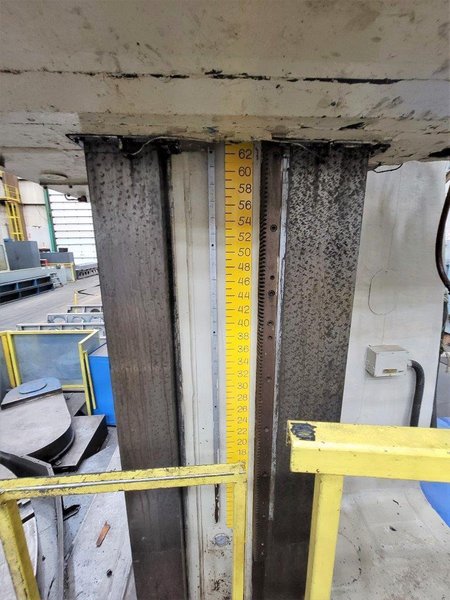

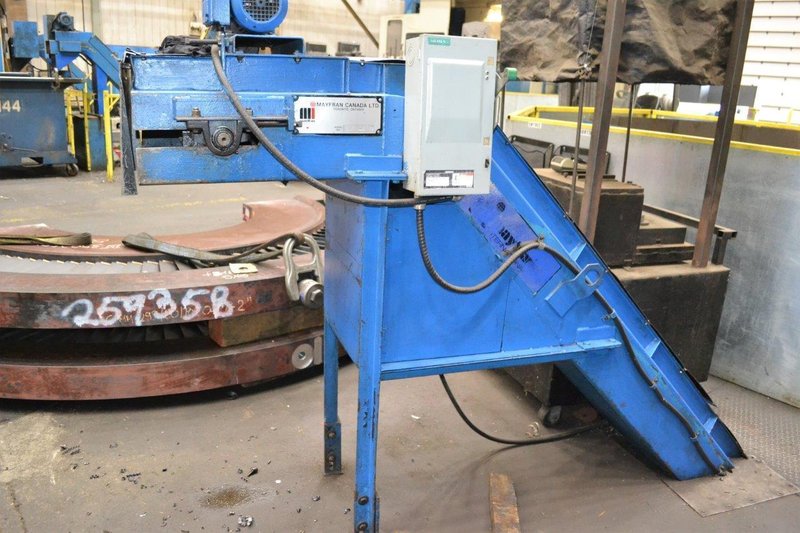

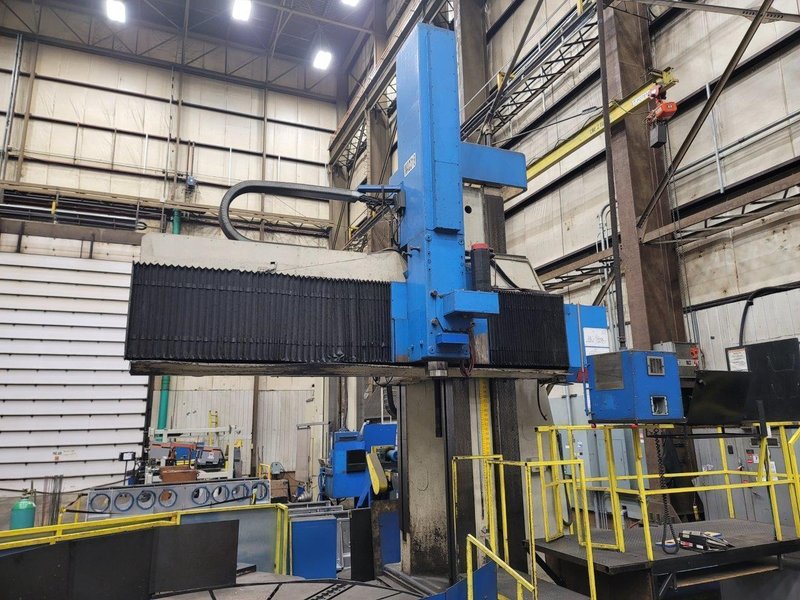

Fanuc 16T-A CNC Controls CAPACITY: Table Diameter: 141.73" Maximum Turning Diameter: 275.62" Maximum Turning Height: 114.17" Maximum Height under Rail: 118.11" Table Weight Capacity: 100,000 lbs. Vertical Ram Travel, Z-Axis: 59.05" Horizontal Travel Of Ram, X-Axis....... 100.37" Table Speeds Range: .55-40 RPM Table Speeds: 16 Steps Feed Range Vertical Ram Head: 0.003-.6 IPR Rapid Traverse, Horizontal Head: 49 IPM Rapid Traverse, Cross Rail: 12 IPM Rapid Traverse, Column: 21 IPM Maximum Torque: 58,000 Lb/Ft Machine Footprint: 410" x 264" Machine Height: 306" Machine Weight: 160,000 lbs. EQUIPPED WITH: Fanuc 16T-A CNC Controls (Retrofit 1994) 141.73" T-Slotted Table with 4-Top Jaws Openside Adjustable Column Vertical Octagonal Ram on Cross Rail Coolant Chip Guards Mayfran Chip Conveyor 50 HP Main Motor Moving Column Style |
